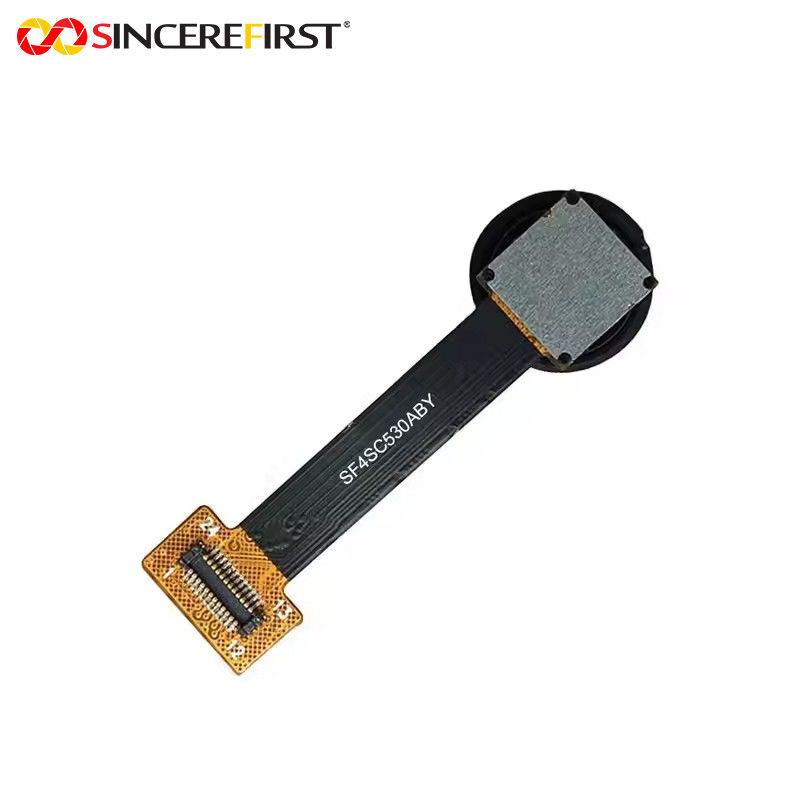

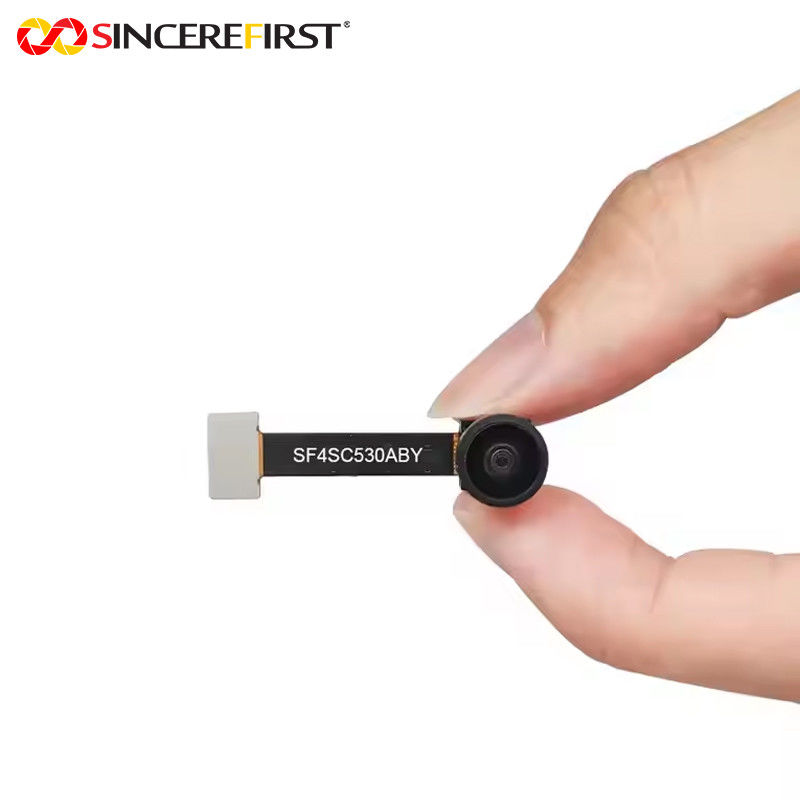

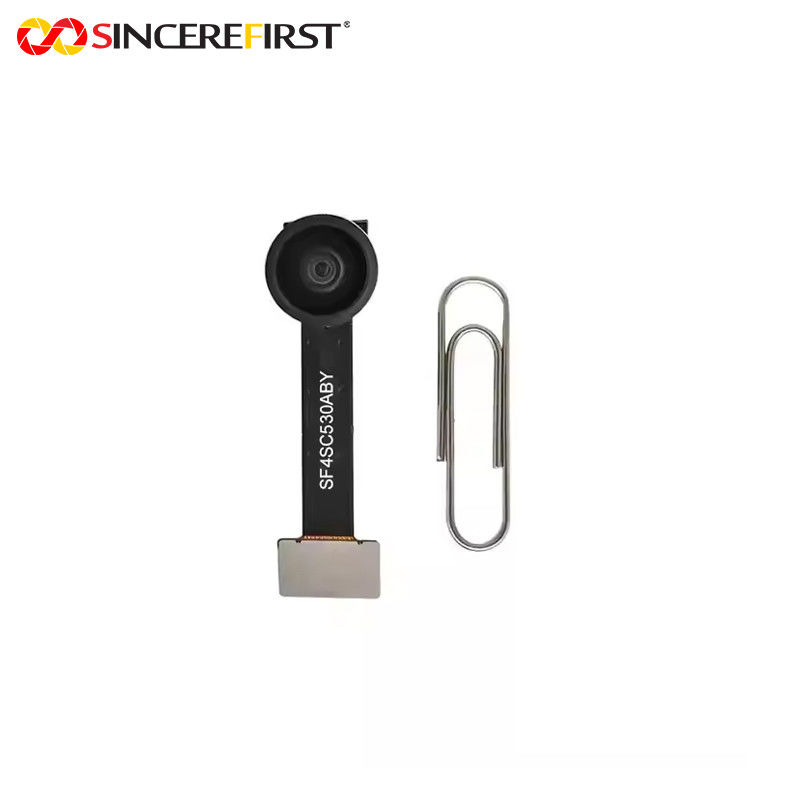

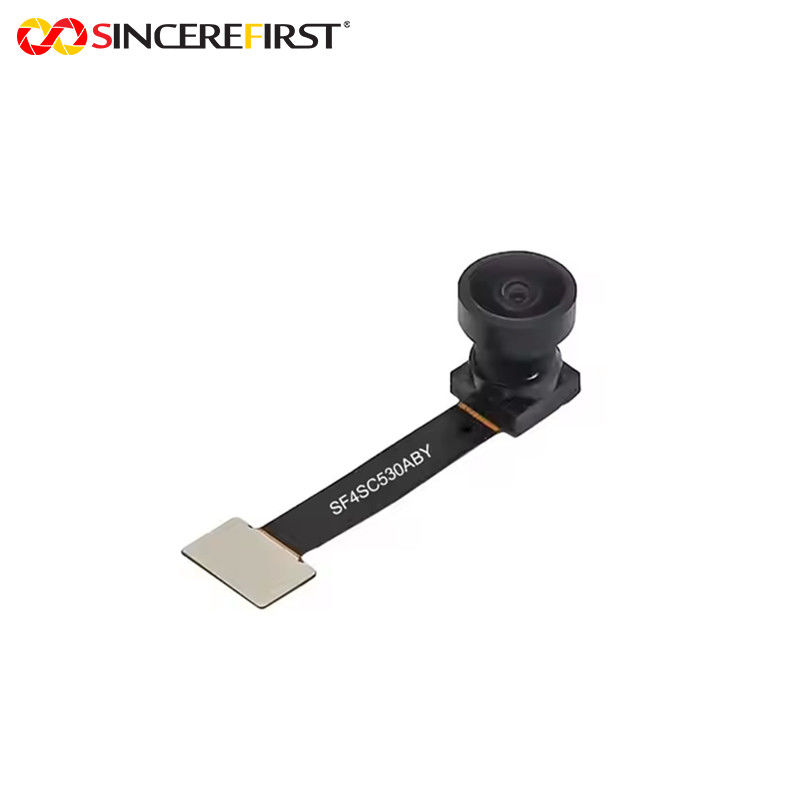

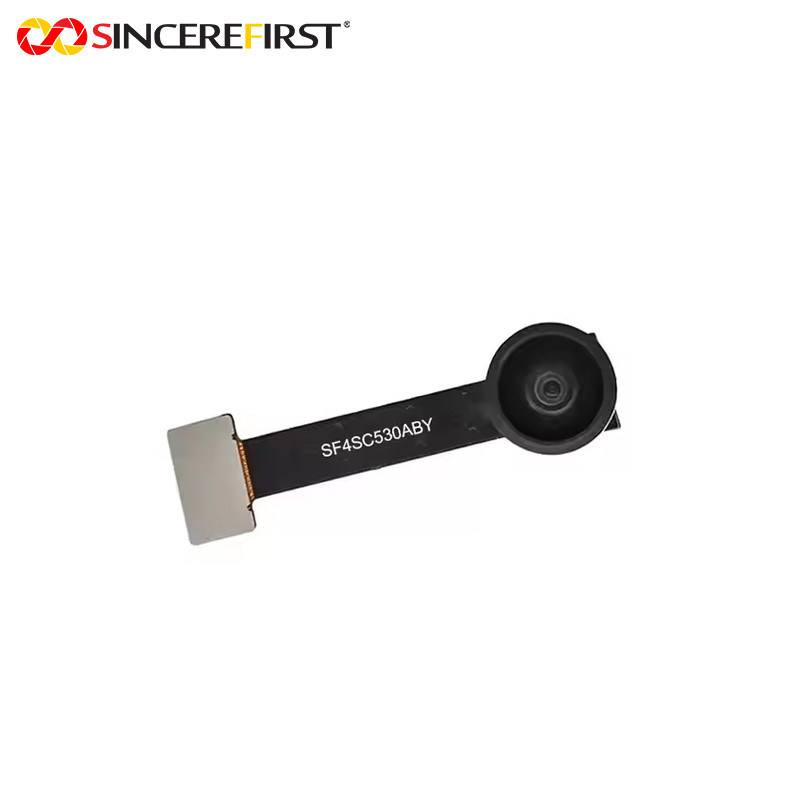

Customization HDR SC530AI Smartsens 5MP RGB MIPI Security Surveillance Camera Module

Product Description:

SF4SC530ABY With a sensor size of 1/2.8inch and an array size of 2880*1620 , this camera module is capable of producing high-quality images and video in a wide range of lighting conditions.

It's also certified to meet the highest industry standards, including Rohs, Reach, and ISO certifications, ensuring that you can trust this camera module to deliver reliable performance for years to come.

SC530AI is an advanced digital CMOS image sensor for surveillance cameras,supporting a maximum resolution of 2880H x1620V@60fps. It outputs raw images,with an effective pixel array of 2884H x 1624V and supports complex on-chip,operations such as windowing,horizontal or vertical mirroring, and so on. lt can be configured via the standard I2C interface. It can achieve external control of frame rate,and multiple sensor synchronization via the EFSYNC/FSYNC pin.

Features:

• HDR

     Staggered HDR

• High sensitivity
• High signal to noise ratio
• Dual conversion gain
• Excellent high temperature performance
• High color rendition
• Low power consumption
• Dynamic DPC
• 76.48x analog gain,4x digital gain
• External control frame rate,multiple sensor

     synchronization

• Horizontal/vertical windowing
• Horizontal/vertical mirror and flip
• 2x2 binning mode
• Programmable 12C port register

Technical Parameters:

Applications:

Whether you're building a surveillance system, developing a new smartphone, or creating a custom IoT device, the SF4SC530ABY is sure to meet your needs. This FPC camera module is designed to provide clear, distortion-free images with a wide view angle of 150°. And with certifications including RoHS, REACH, and ISO, you can trust that it meets the highest standards for quality and safety.

Some of the most common applications for this FPC camera module include:

• Security systems: Whether you're monitoring a home, office, or industrial facility, the SF4SC530ABY can provide high-quality video footage to help keep your property and assets safe.
• Automotive: From backup cameras to dashcams, this camera module is an excellent choice for any automotive application where clear, reliable video is essential.
• Consumer electronics: Whether you're designing a new smartphone, tablet, or other device, the SF4SC530ABY can provide excellent image quality in a compact, easy-to-integrate package.
• IOT devices: With its wide view angle and distortion-free images, this camera module is a great choice for any IOT device that requires video functionality.

Overall, the SINCERE FIRST SF4SC530ABY FPC camera module is an excellent choice for anyone looking for a reliable, high-quality camera module for their project. With its wide range of applications and certifications, it's sure to meet the needs of any project or application.

Customization:

SINCERE FIRST offers product customization services for their SF4SC530ABY MIPI Camera Module, a high-quality camera module for various applications. This camera module is manufactured in Guangdong,  a focus range of 40cm to infinity.

With our product customization services, we can tailor this camera module to your specific needs and requirements. Whether you need a different pinout, lens, or view angle, we can work with you to create a camera module that meets all of your specifications. Contact us today to learn more about our camera module customization services.
