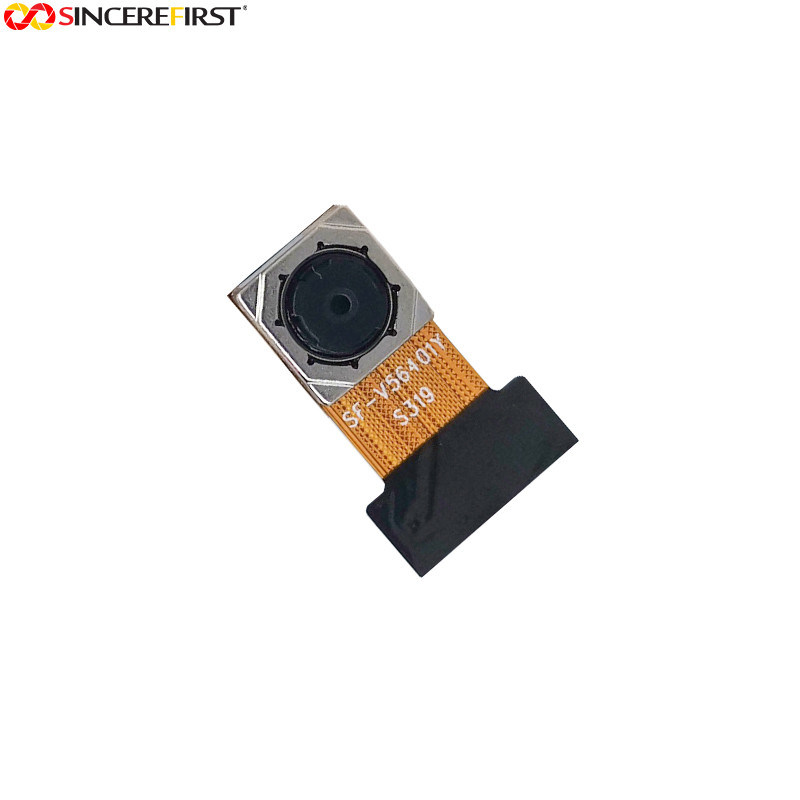

OV5640 Image Sensor Camera Module CMOS Cam Module 200cm Focus Distance

OV5640 Image Sensor Camera Module CMOS Cam Module 200cm Focus Distance

  • Highlight

    OV5640 Image Sensor Camera Module

    ,

    200cm Focus Image Sensor Camera Module

  • Focus Distance
    200cm
  • F. NO
    2.8
  • Distortion
    <1%
  • Chip Type
    OV5640-CSP
  • Sensor Size
    1/4 Inch
  • Array Size
    2592*1944
  • View Angle
    DFOV=68.7° / HFOV=58.1°
  • VCM
    Yes
  • Pinout
    24pin
  • Development Board
    Raspberry Pi
  • Place of Origin
    Guangdong , China
  • Brand Name
    SINCERE FIRST
  • Certification
    CE, FCC, RoHS, REACH, ISO
  • Model Number
    SF-V56401Y
  • Minimum Order Quantity
    5 pcs
  • Price
    Negotiable
  • Packaging Details
    Package, Carton Box
  • Delivery Time
    7 - 15 Work Days
  • Payment Terms
    L/C, Western Union, T/T, MoneyGram, Paypal and Others
  • Supply Ability
    350000 pcs / month

OV5640 Image Sensor Camera Module CMOS Cam Module 200cm Focus Distance

CMOS Image Sensor OV5640 Image Sensors & Camera & Modules Cam Module

Product Description:

The OV5640 (color) image sensor is a low voltage, high-performance, 1/4-inch 5 megapixel CMOS image sensor that provides the full functionality of a single chip 5 megapixel (2592×1944) camera using OmniBSI™ technology in a small footprint package. It provides full-frame, sub-sampled, windowed or arbitrarily scaled 8-bit/10-bit images in various formats via the control of the Serial Camera Control Bus (SCCB) interface.

The OV5640 has an image array capable of operating at up to 15 frames per second (fps) in 5 megapixel resolution with complete user control over image quality, formatting and output data transfer. All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control, defective pixel canceling, noise canceling, etc., are programmable through the SCCB interface or embedded microcontroller. The OV5640 also includes a compression engine for increased processing power. In addition, Omnivision image sensors use proprietary sensor technology to improve image quality by reducing or eliminating common lighting/electrical sources of image contamination, such as fixed pattern noise, smearing, etc., to produce a clean, fully stable, color image.

Features:

◆1.4 μm x 1.4 μm pixel with OmniBSI technology for high performance (high sensitivity, low crosstalk, low noise, improved quantum efficiency)
◆optical size of 1/4"
◆automatic image control functions:automatic exposure control (AEC), automatic white balance (AWB),automatic band filter (ABF),automatic 50/60 Hz luminance detection, and automatic black level calibration(ABLC)
◆programmable controls for frame rate,AEC/AGC 16-zone size/position/weight control,mirror and flip, cropping, windowing, and panning
◆image quality controls: color saturation,hue, gamma, sharpness (edge enhancement), lens correction,defective pixel canceling, and noise canceling
◆support for output formats:RAW RGB, RGB565/555/444.CCIR656,YUV422/420, YCbCr422,and compression
◆support for video or snapshot operations
◆support for LED and flash strobe mode
◆support for internal and external frame synchronization for frame exposure mode

◆support for horizontal and vertical sub-sampling. binning
◆support for minimizing artifacts on binned image
◆support for data compression output
◆support for anti-shake
◆standard serial SCCB interface
◆digital video port (DVP) parallel output interface and dual lane MIPI output interface
◆embedded 1.5V regulator for core power
◆programmable I/O drive capability, I/Otri-state configurability
◆support for black sun cancellation
◆support for images sizes: 5 megapixel, and any arbitrary size scaling down from 5 megapixel
◆support for auto focus control (AFC) with embedded AF VCM driver
◆embedded microcontroller
◆suitable for module size of 8.5 x 8.5 x<6mm with both CSP and RW packaging



Applications:

OV5640 sensor is also used in automotive and industrial applications. Its advanced imaging capabilities and compact size make it ideal for use in a variety of automotive and industrial applications, including camera systems, security systems, and machine vision systems.





OV5640 Image Sensor Camera Module CMOS Cam Module 200cm Focus Distance 0OV5640 Image Sensor Camera Module CMOS Cam Module 200cm Focus Distance 1OV5640 Image Sensor Camera Module CMOS Cam Module 200cm Focus Distance 2
