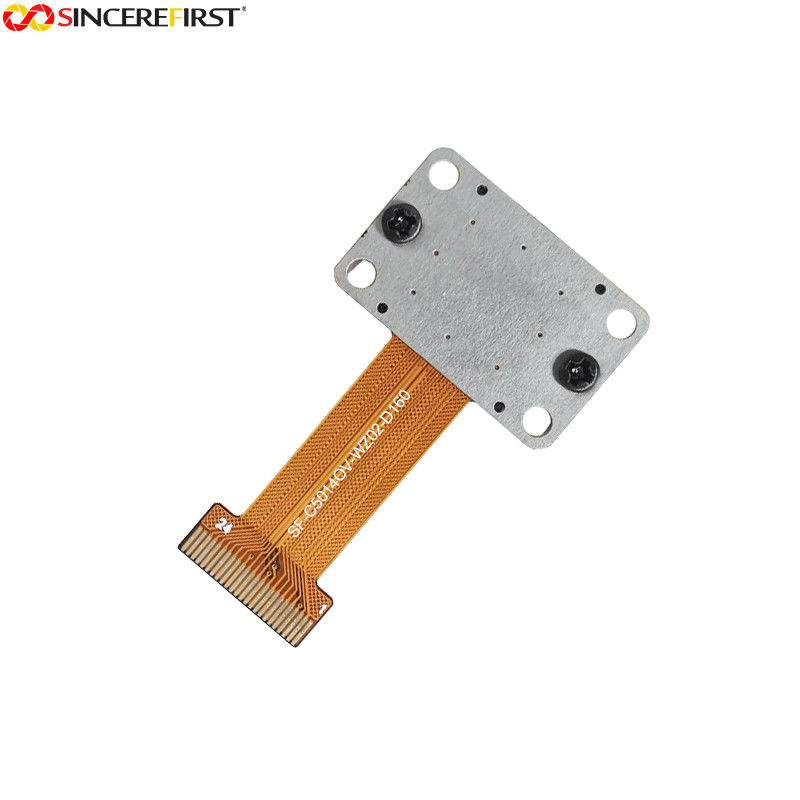

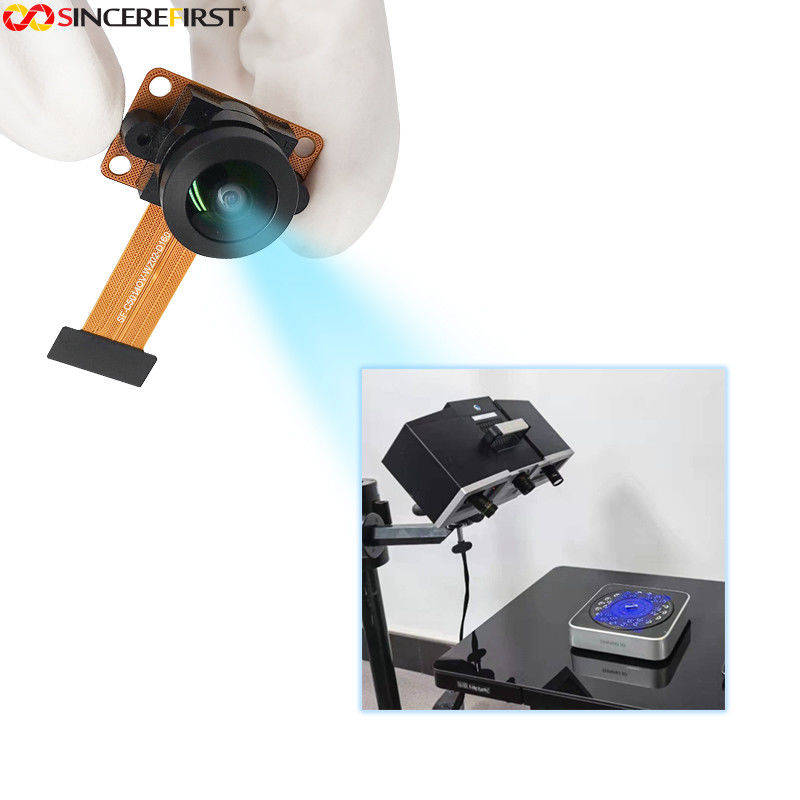

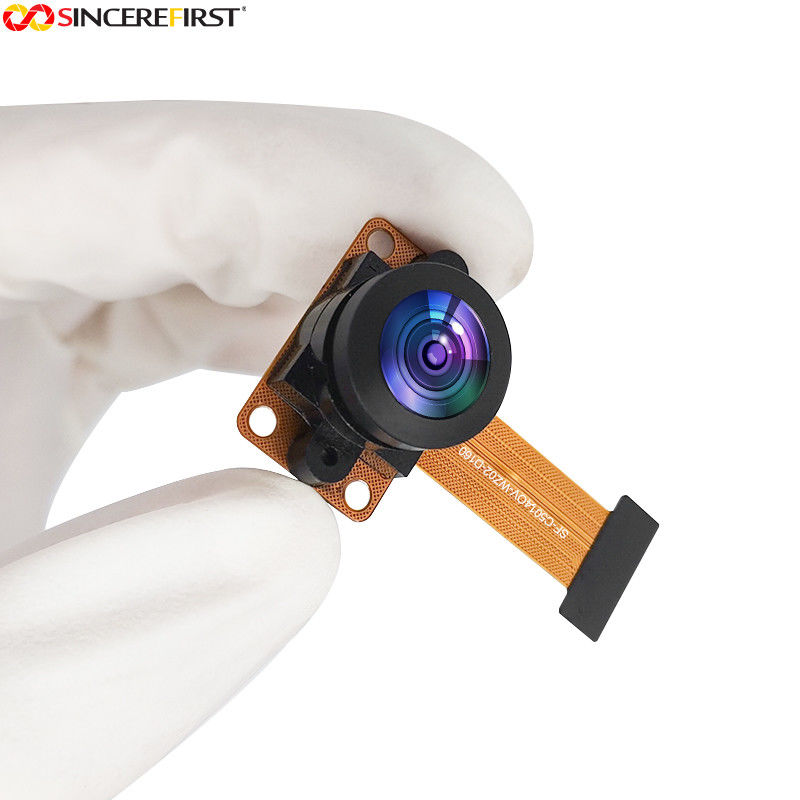

The OV5640 – 5.0 MP Camera Module is based on the OV5640 color sensor from OmniVision. The sensor has a 1/4.0″ optical format, which combined with the pixel size of 1.4 µm x 1.4 µm, results in the 5.0 MP 2592 x 1944 VGA | WVGA | SXGA | UXGA | QXGA image. This is a rolling shutter sensor, which captures an entire column (or row) simultaneously, and compiles the image by scanning across (or down). The lens and/or sensor have an IR-cut filter, so this module is not appropriate for low-light photography. This module does not have a lens mount, but relies on the optics supplied with the sensor.Use this camera module on a Windows, Linux, or Raspberry Pi USB connection with the ArduCAM USB Camera Shield on the primary interface (a 20-pin 0.1″ / 2.54 mm pitch interface), or your custom-built interface.
| Technical Parameter | Description |
|---|---|
| Focusing Range | 30cm to 250cm |
| Focal Length | 2.79mm |
| F Number | 2.4 |
| Fov(H) | 76° |
| TV Distortion | ＜-25% |
| Sensor | OV5640 |
| Test Connector | FH12-24S-0.5DSH |
| Output Format | YUV Output |
| Pinout | 24PIN |
| Pixels | 5MP |
We can customize FPC length, module shape, module head size, lens holder, imaging direction, pinout, connector, VCM, lens, firmware, etc.
1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
robotics, drones, IoT, medical equipment
