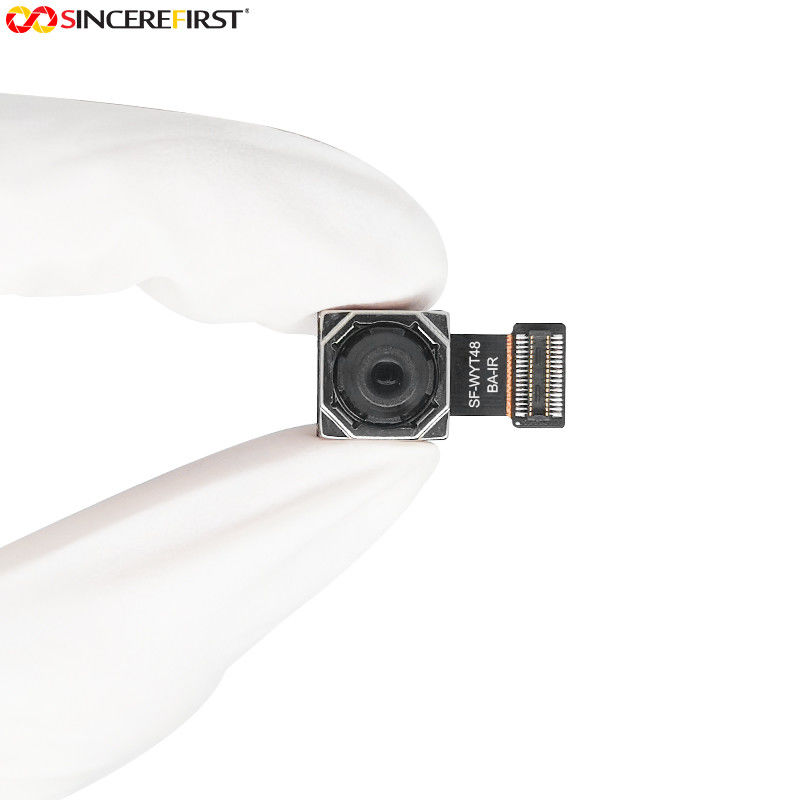

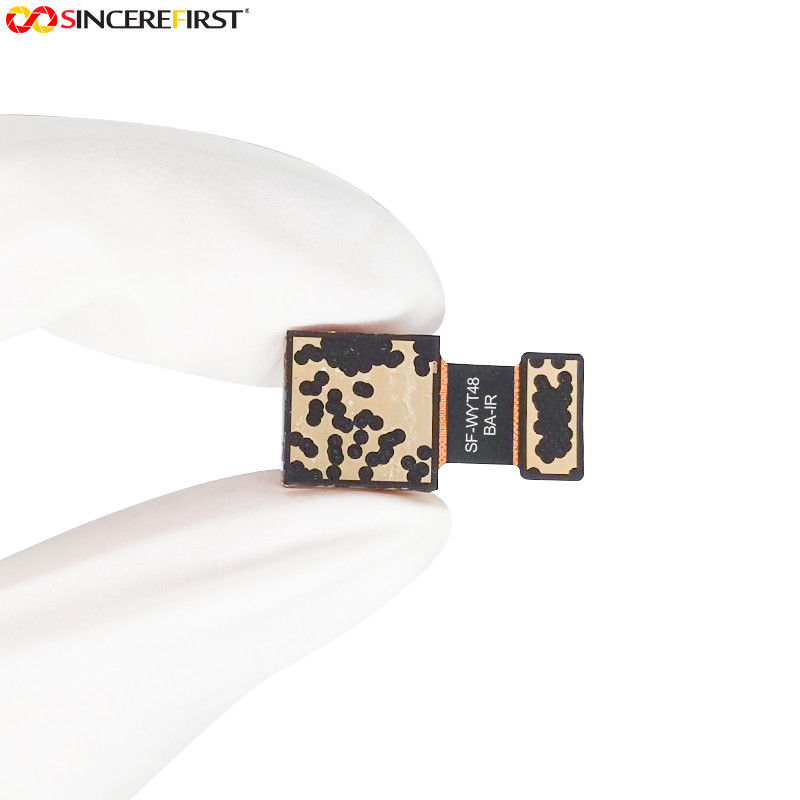

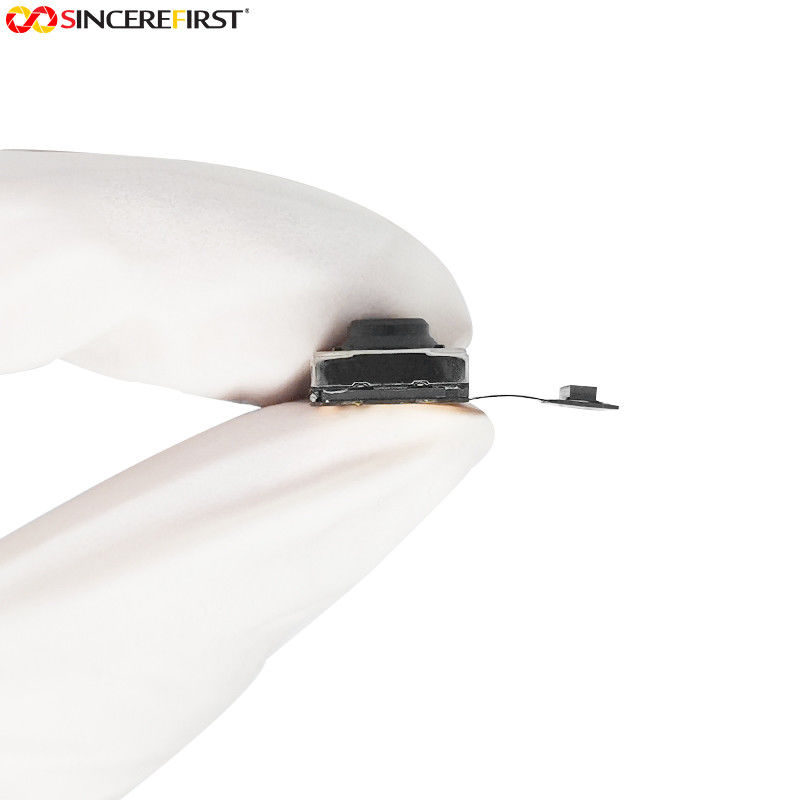

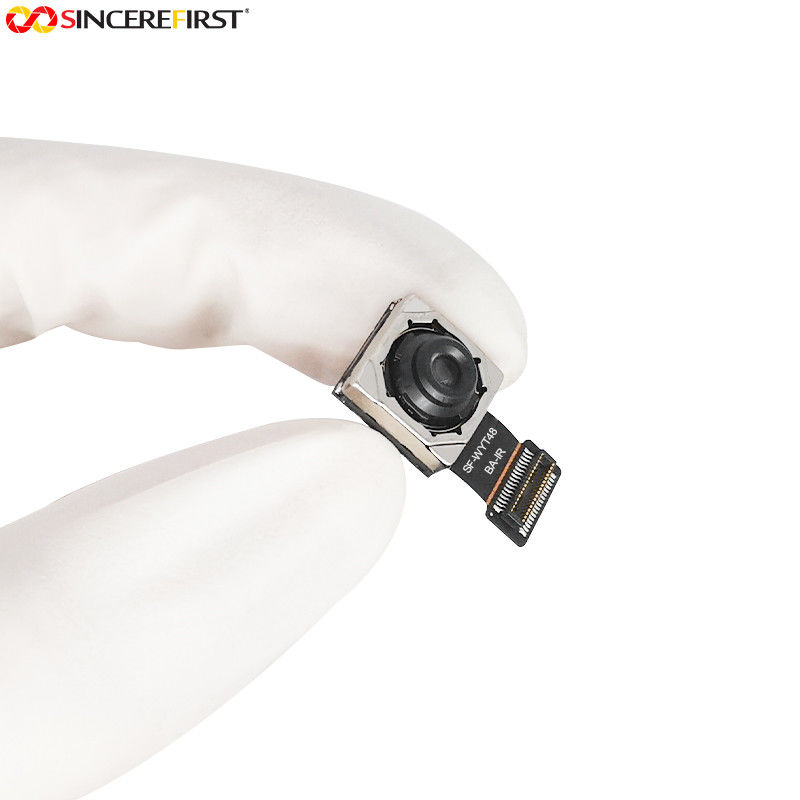

48mp Omnivision OV48B 1/2" CMOS Image Sensor Mipi Camera Module
Specificaitons
| Focus Range | 89mm |
| Distortion | <1.5% |
| Interface | MIPI |
| Focus | AF |
| View Angle | 79° |
| IR Filter | Support |
| Theory | CMOS Imaging |
| Type | Image Sensor |
| Usage | Smart Imaging ang Vision |
| Lens | 60122A1 |
Description
OMNIVISION’s OV48B is its first 48‑megapixel (MP) image sensor with the industry’s smallest die size, featuring a 0.801 µm pixel size to enable high resolution smartphone cameras with a 1/2″ optical format. Built on OMNIVISION’s PureCel®Plus stacked die technology, this sensor provides leading edge still image capture and video performance for both mainstream and high end smartphones. Additionally, it offers a wide range of features such as digital crop zoom and a CPHY interface, making it a versatile sensor for all types of rear facing cameras in multi-camera configurations, including main, wide angle and telephoto.
The OV48B integrates an on‑chip 4‑cell color filter array and hardware re‑mosaic, which provides high quality, 48MP Bayer output in real time. In low light conditions, this sensor can use near-pixel binning to output a 12MP image with four times the sensitivity. The OV48B can consistently capture the best quality images and videos without motion blur, as well as enabling digital crop zoom with 12MP resolution and fast mode switch.
This sensor also features both DPHY and CPHY MIPI interfaces, which enables fast frame rates using fewer pins. The OV48B includes 2×2 microlens phase detection autofocus (ML‑PDAF) to boost accuracy, especially in low light.
Features
◆Automatic black level calibration (ABLC)
◆Programmable controls for:
– Frame rate
– Mirror and flip
– Binning
– Cropping
– Windowing
◆Support for dynamic DPC cancellation
◆Supports output formats:
– 10-bit RGB 4C pattern
◆Supports horizontal and vertical subsampling
◆Supports typical images sizes:
– 8000 x 6000
– 4000 x 3000
– 3840 x 2160
– 1920 x 1080
– 1280 x 720
◆Standard serial SCCB interface
◆Up to 4-lane MIPI TX interface with speed up to 2.35 Gbps/lane
◆2/3 trio CPHY interface, up to 1.45 Gsps/trio
◆Embedded 16k bits of one-time programmable (OTP) memory (4k bits reserved for customer use)
◆Supports 2×2 ML PD
◆4-cell support:
– 4-cell binning
– 4-cell full
◆On-chip 4-cell to Bayer converter
◆Three on-chip phase lock loops (PLLs)
◆Programmable I/O drive capability
◆Built-in temperature sensor
◆Typical module size: 9.5 x 9.5 x 5.9 mm
SCCB control interface for register programming
Applicaitons
security and surveillance
automotive
tablets
notebooks
webcams and entertainment devices
medical
AR
VR
drones
robotics imaging systems
