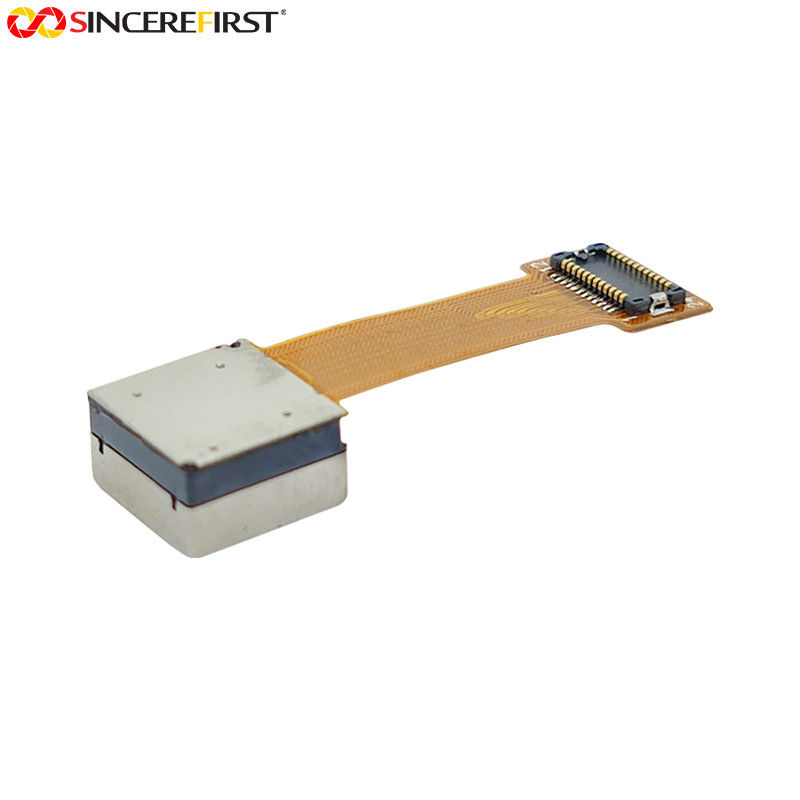

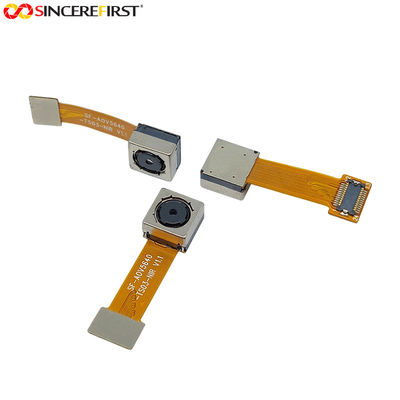

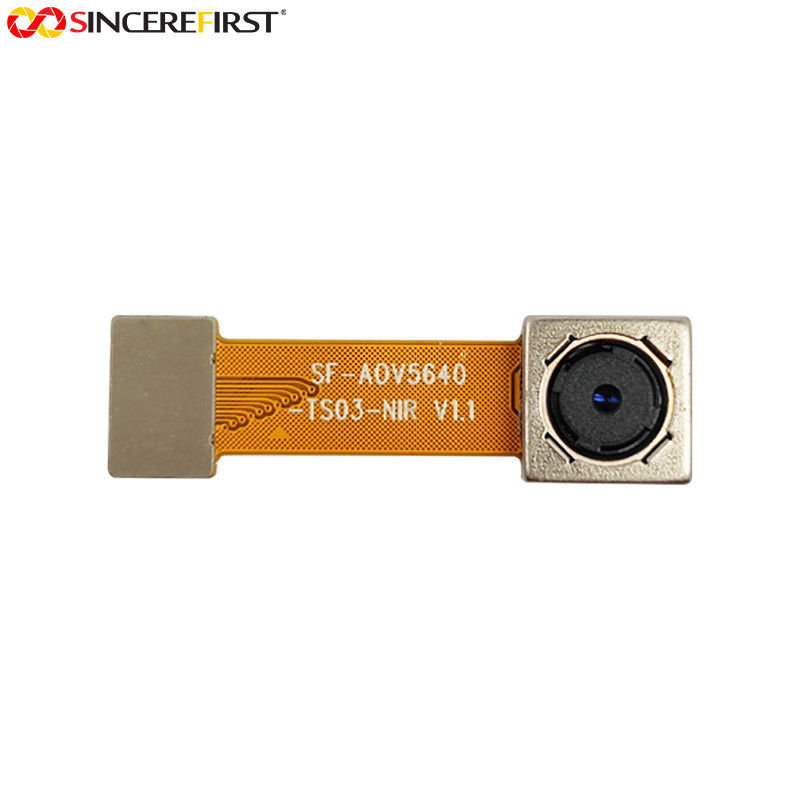

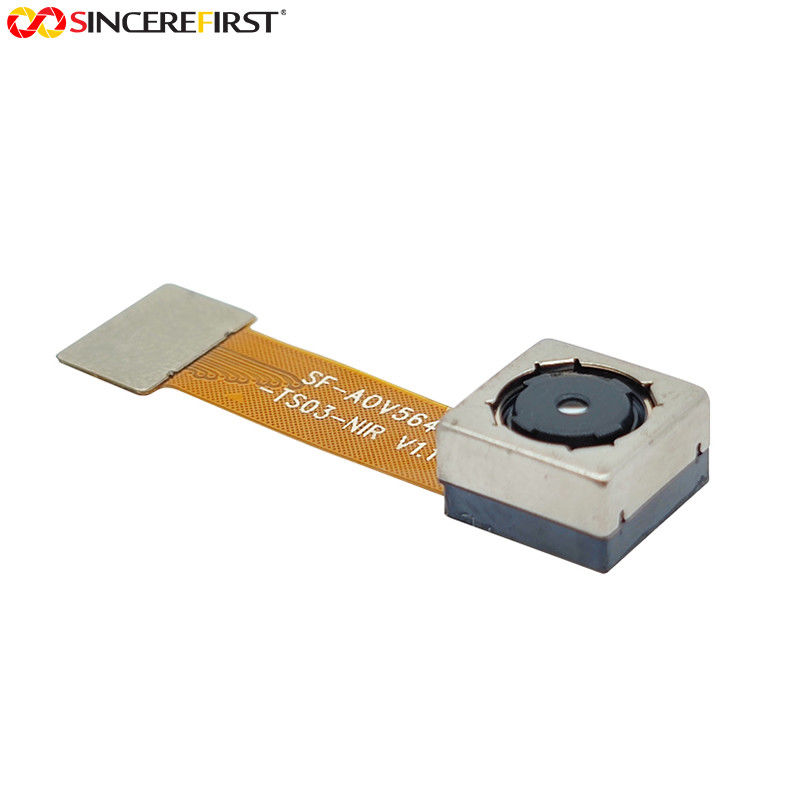

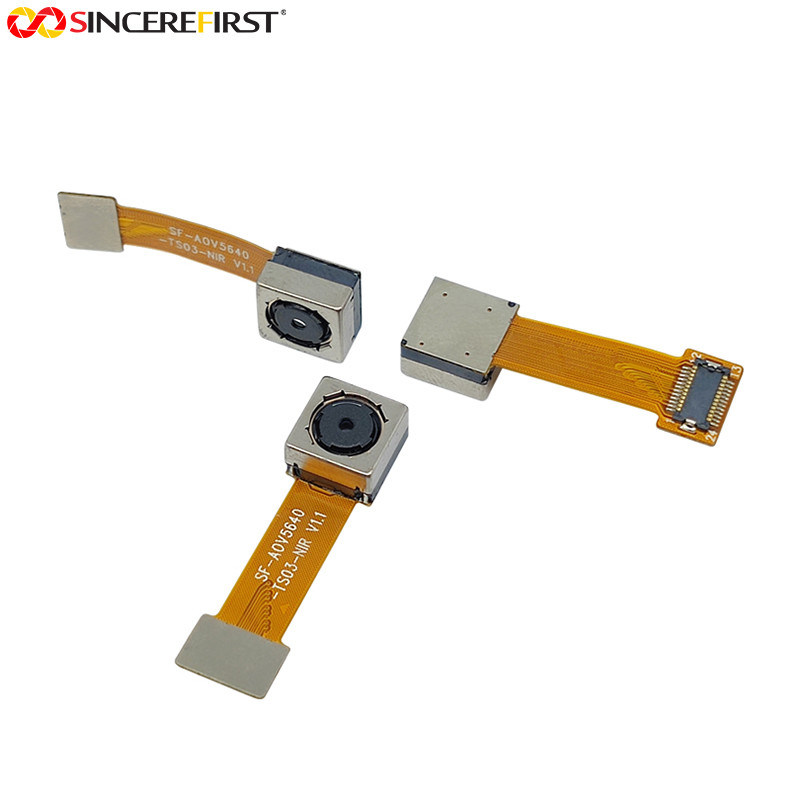

5 Megapixel OV5640 Automotive Image Sensor Radar Mipi Camera Module
Specificaitons
| Output Format | YUV output |
| Foam | 8.0*8.0*0.5 |
| Frame Rate | 720p:60fps |
| Interface | MIPI |
| Type | Cmos camera module |
| Customized Support | Online technical support, Customized logo, Software engineering, OEM, ODM |
| Lens Angle | DFOV65° |
| I/O | 1.8V / 2.8V |
| Data Storage Options | Cloud, Full HD |
| Active Array Size | 2592 x 1944 |
Description
The OV5640 image sensor is capable of taking 2592x1944 (5MP) images. The sensor supports Grayscale, RGB565, JPEG, YUV422, and Bayer image formats. Depending on the resolution you can achieve up to 120 FPS frame rates.
Features
◆1.4 µm x 1.4 µm pixel with OmniBSI technology for
high performance (high sensitivity, low crosstalk, low
noise, improved quantum efficiency)
◆optical size of 1/4"
◆automatic image control functions: automatic
exposure control (AEC), automatic white balance
(AWB), automatic band filter (ABF), automatic
50/60 Hz luminance detection, and automatic black
level calibration (ABLC)
◆programmable controls for frame rate, AEC/AGC
16-zone size/position/weight control, mirror and flip,
cropping, windowing, and panning
◆image quality controls: color saturation, hue, gamma,
sharpness (edge enhancement), lens correction,
defective pixel canceling, and noise canceling
◆support for output formats: RAW RGB,
RGB565/555/444, CCIR656, YUV422/420,
YCbCr422, and compression
◆support for video or snapshot operations
◆support for internal and external frame synchronization for frame exposure mode
◆support for LED and flash strobe mode
◆support for horizontal and vertical sub-sampling,
binning
◆support for minimizing artifacts on binned image
◆support for data compression output
◆support for anti-shake
◆standard serial SCCB interface
◆digital video port (DVP) parallel output interface and dual lane MIPI output interface
◆embedded 1.5V regulator for core power
◆programmable I/O drive capability, I/O tri-state
configurability
◆support for black sun cancellation
◆support for images sizes: 5 megapixel, and any arbitrary size scaling down from 5 megapixel
◆support for auto focus control (AFC) with embedded AF VCM driver
◆embedded microcontroller
◆suitable for module size of 8.5 x 8.5 x <6mm with both CSP and RW packaging
SCCB control interface for register programming
Applicaitons
Agriculture
Medical & Life Science
Industry
Logistics & Transport
Retail
