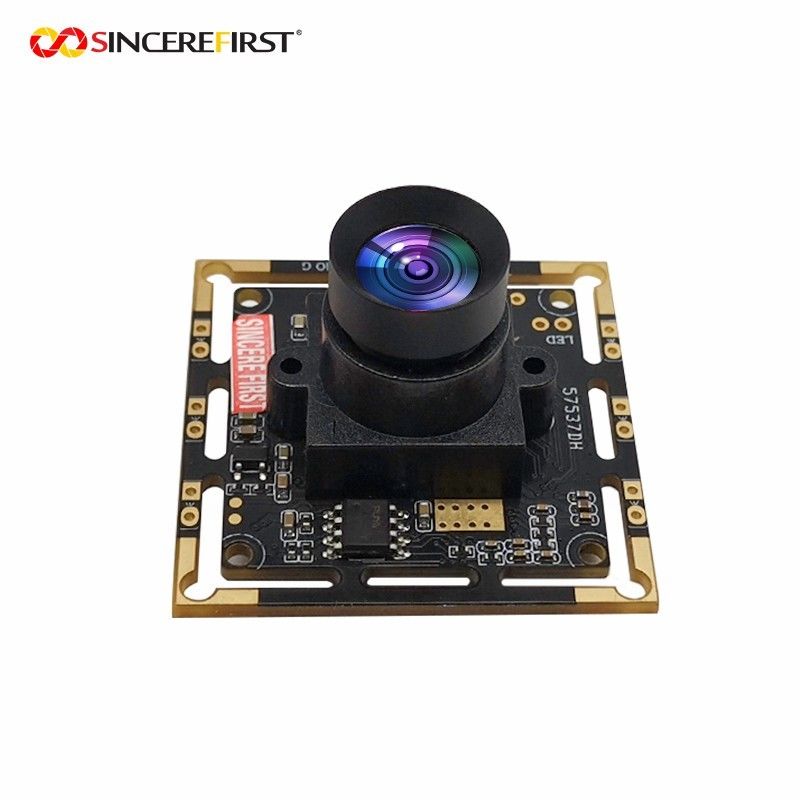

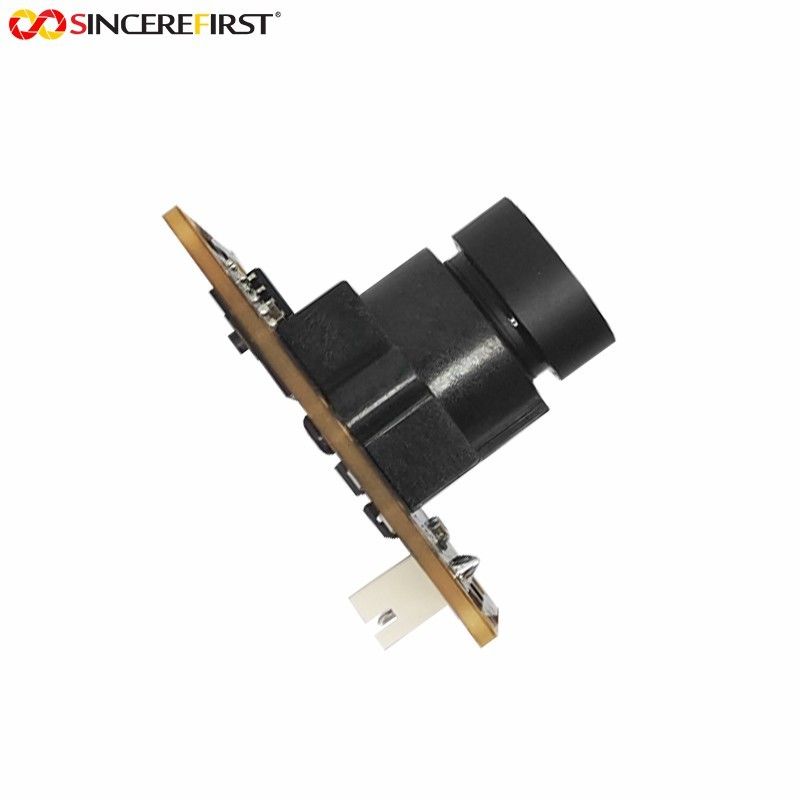

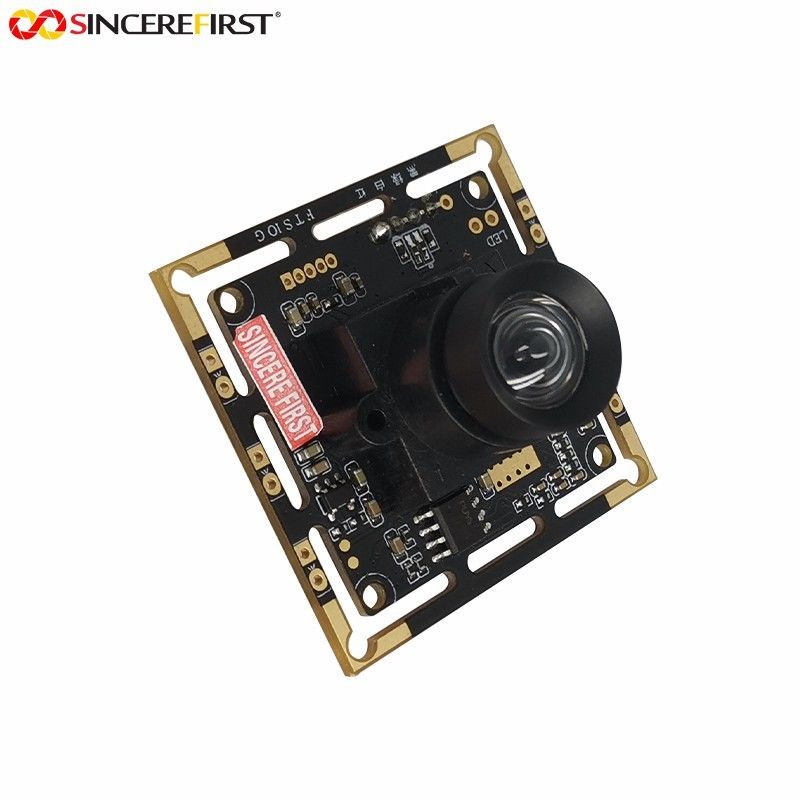

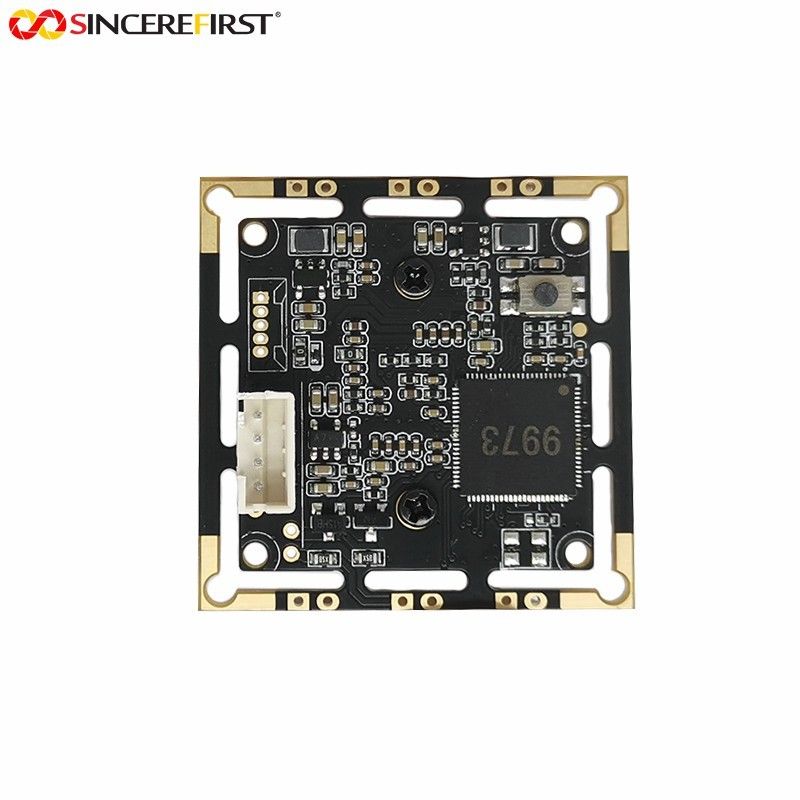

5MP AR0522 Infrared Obstacle Avoidance Camera Sensor Camera Module Price
Specificaitons
| Module Pixel | 5MP |
| Sensor Type | AR0522 Sensor |
| Module Size | 38mm × 38mm(±1mm) |
| Photosensitive Size | 1/2.5", 1/4" |
| Pixel Size | 2.2μm X 2.2μm |
| Focus Mode | Fixed Focus |
| Imaging Distance | 1cm~∞ |
| Drive-free Agreement | UVC |
| AEC | Support |
| AEB | Support |
Description
The AR0522 is a 1/2.5-inch CMOS digital image sensor with an active-pixel array of 2592 (H) x 1944 (V). It captures images in either
linear or high dynamic range modes with a rolling-shutter readout, and includes sophisticated camera functions such as binning,
windowing and both video and single frame modes. It is designed for both low light and high dynamic range performance, with line
interleaved T1/T2 read out to support off chip HDR in an ISP chip. The AR0522 produces extraordinarily clear, sharp digital pictures,
and its ability to capture both continuous video and single frames makes it the perfect choice for wide range of applications.
Features
◆5 Mp at 60 fps for Excellent Video Performance
◆Small Optical Format (1/2.5-inch)
◆Color Filter Array : RGB and Monochrome
◆1440p Mode for 16:9 Video
◆Superior Low-light Performance
◆2.2 m Back Side Illuminated Pixel Technology
◆Supports Line Interleaved T1/T2 Readout to Enable HDR Processing in ISP Chip
◆Support for External Mechanical Shutter
◆On-chip Phase-locked Loop (PLL) Oscillator
◆Integrated Color and Lens Shading Correction
Applicaitons
Video Surveillance
High Dynamic Range Imaging
Machine Vision
