Micro 5mp USB Camera Module MI5100 Image Sensor In Drone Camera
Specificaitons
| Sensor | 1/2.5’’ MI5100 |
| Resolution | 5 Mega Pixel |
| Most effective pixels | 2592(H) x 1944(V) |
| Pixel Size | 2.2µm x 2.2µm |
| Frame | 30 fps |
| Focus type | Fixed focus |
| Interface type | USB2.0 |
| Adjustable Parameter | Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure |
| Dimension | 38mm*38mm |
| Storage Temperature | -20°C to 70°C |
Description

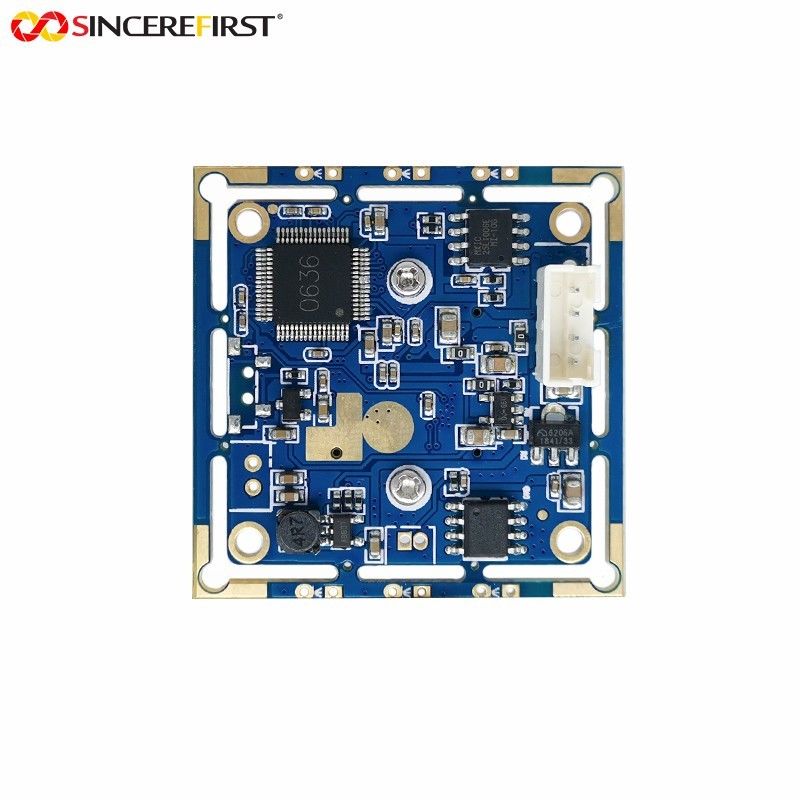

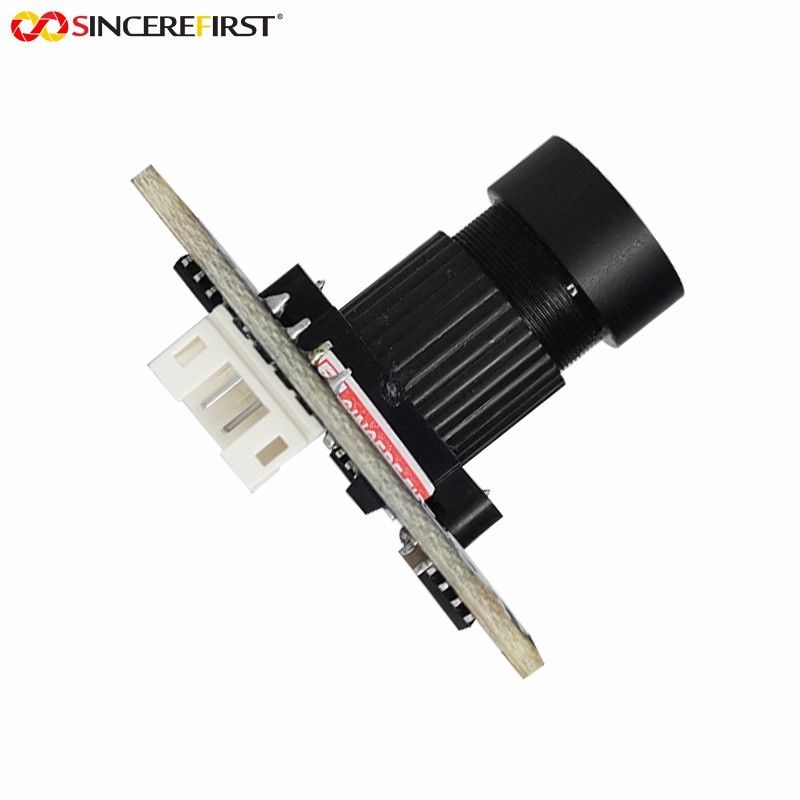

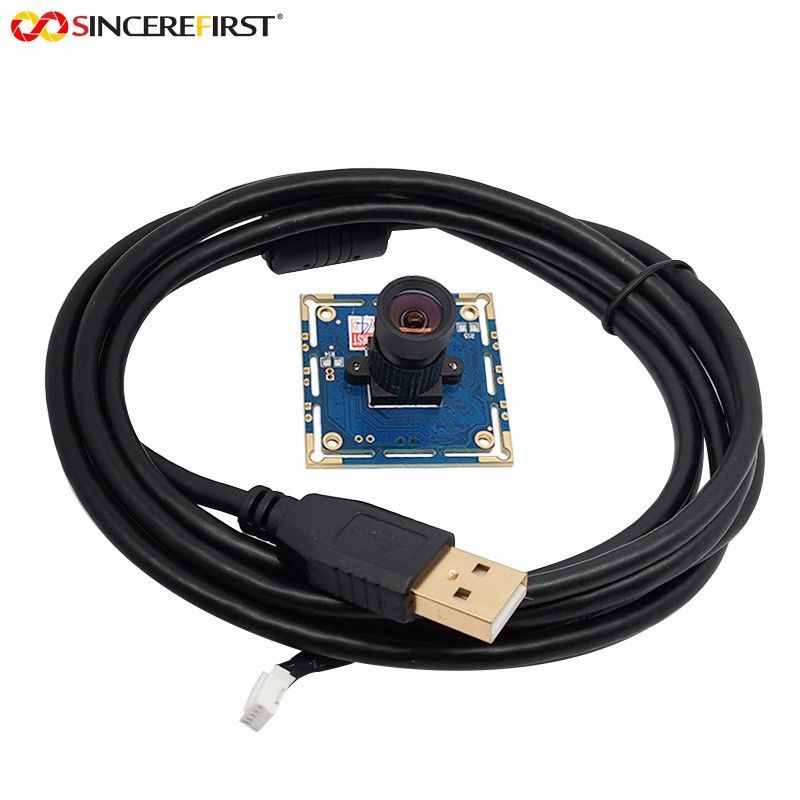

SINCERE FIRST 5MP USB2.0 camera module is based on a 1/2.5-inch MI5100 CMOS sensor, which provides best-in-class low-light performance and image quality, it combines with the pixel size of 1.4 µm x 1.4 µm, and results in the 5.0 Megapixel 2592H x 1944V VGA image. The in-built Digital Signal Processor (DSP) that supports programmable controls like gain, and exposure, the DSP has been tuned to achieve excellent image performance. It is a plug-and-play camera UVC compliant camera module for Windows and Linux, it is a driver-free camera as well. Our off-the-shelf dimension is 38*38mm, and 32*32mm, any other required dimension can be customized.
Features
◆MI5100 camera sensor
◆5MP resolution with Micron MI5100 CMOS sensor
◆Fixed focus/Manully adjustable
◆High quality image, high quality microphones
◆UVC compliant, Plug & Play
◆Support USB2.0 OTG
◆Support Linux, Android, Mac and Windows, etc
◆Module size is 38MM*38MM
◆Fully customizable
Applicaitons
medical equipment
beauty instrument
scanning
educational equipment
face recognition
robotics
Machine vision

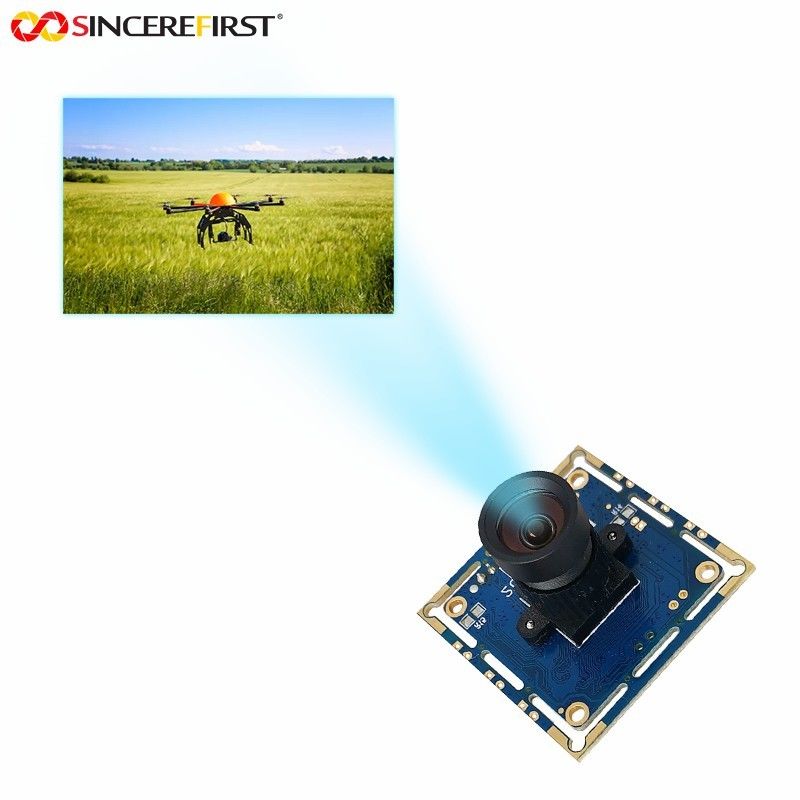

Drone
