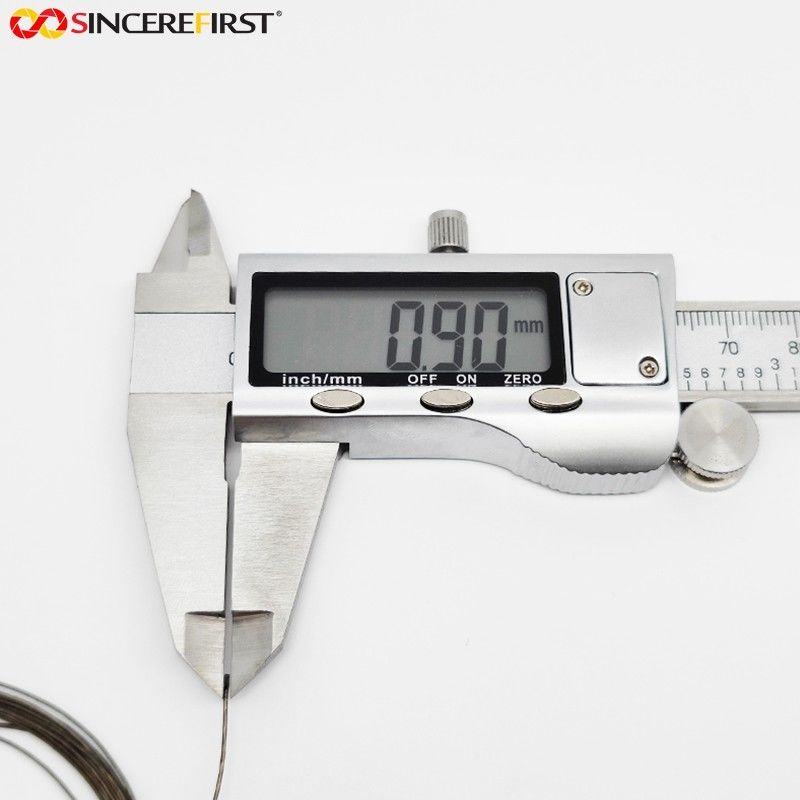

Miniature 0.9mm OVM6948 Endoscope Camera Module Price With LED Light FOV120
Specificaitons
| Style | Mini Endoscope Camera Module |
| Sensor | CMOS |
| DOF | 3-50mm |
| Effective Pixels | 200*200 |
| FOV | 120 degree |
| Light source | With Led |

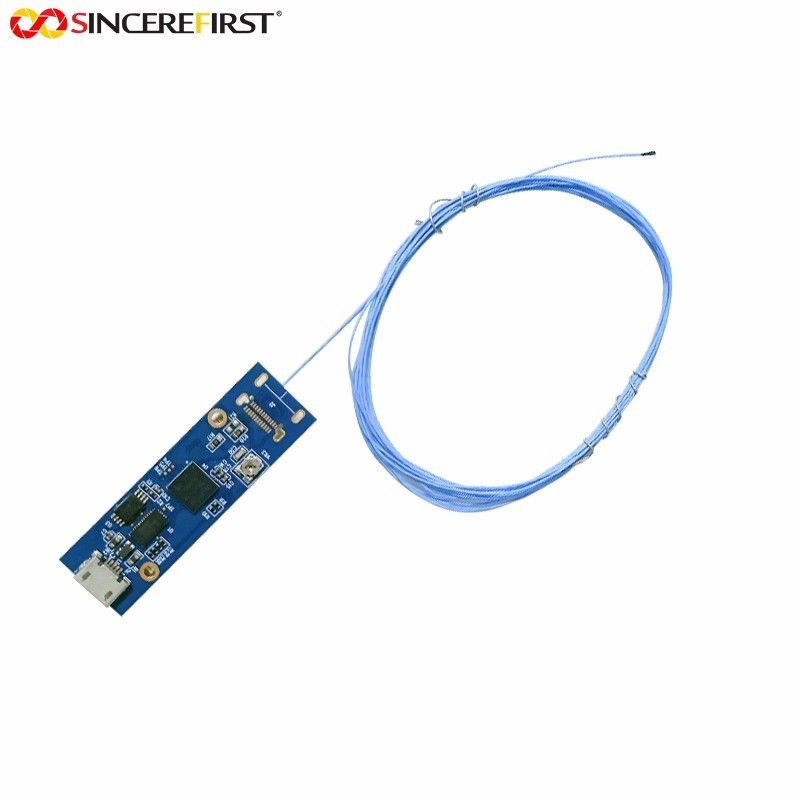

| Interface | USB |
| Application | Medical Endoscopy Field |
| Features | Waterproof / Weatherproof |
| Place of Origin | China |
Description

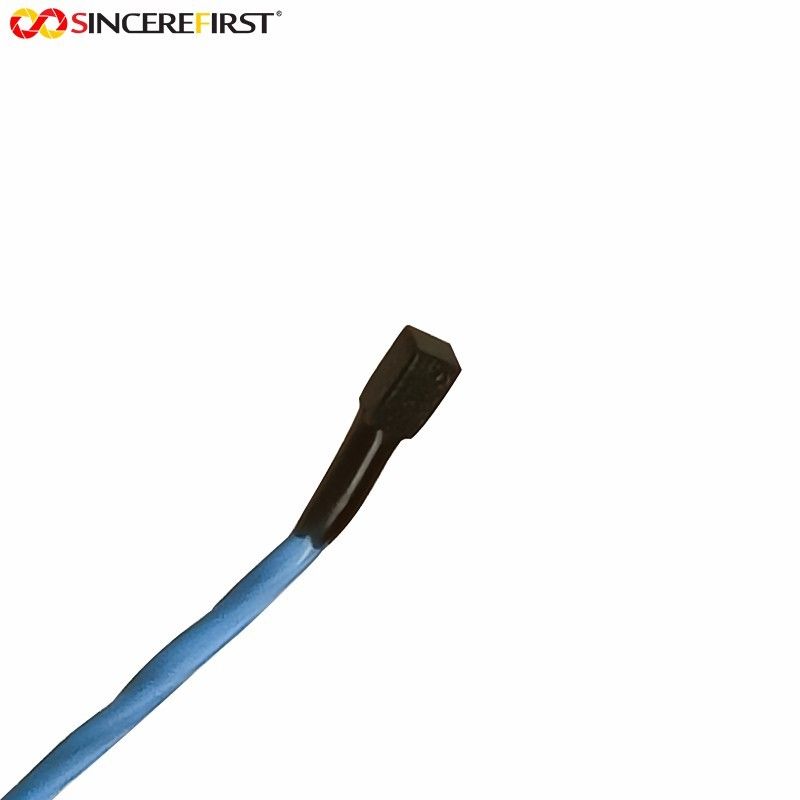

The OVM6948 CameraCubeChip from OmniVision Technologies Inc. is a wafer-level medical camera module.
The endoscope camera module addresses the market demand for decreased invasiveness and deeper anatomical access. Additionally, it can address the many challenges posed by reusable medical imaging equipment including cross-contamination risks and inefficiencies due to high maintenance costs. Backside illumination provides high image quality and low-light performance to help reduce LED heat and improve sensitivity.
Other key features of this endoscope camera module include a wide 120° field of view and an extended focus range of 3 to 50 mm. Its image array is capable of capturing 200 × 200 resolution images and video at up to 30 fps. Its analog output can transmit over 4 m with minimal noise. A low power consumption of 25 mW generates less heat for better patient comfort and flexible procedure durations.
Features
◆optical size of 1/36"
◆low power consumption
◆non-autoclavable
◆single 3.3V power supply
◆AntLinx Analog output
◆OmniBSI*+pixel structure using 0.11 um process
Applicaitons
disposable medical
dental
veterinarian
industrial endoscopes
