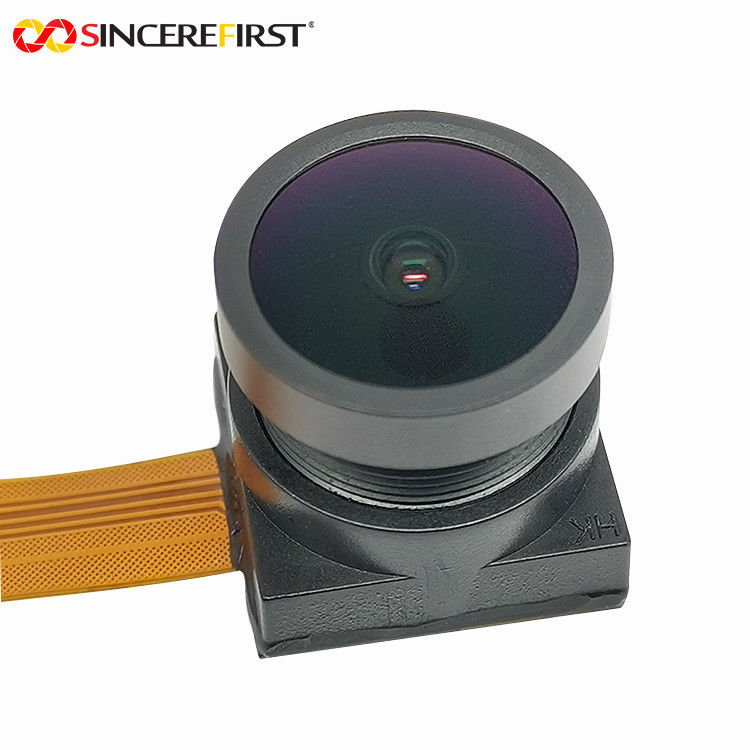

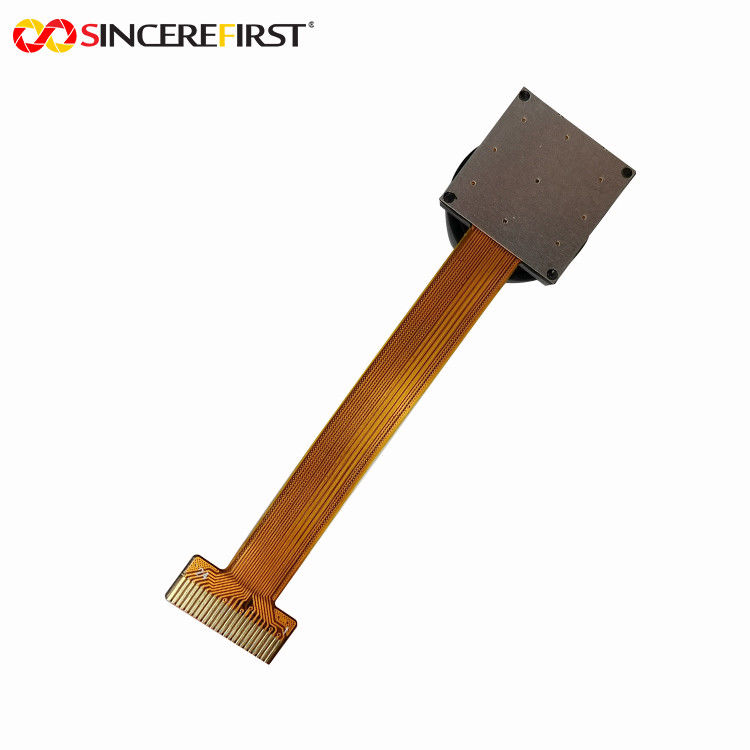

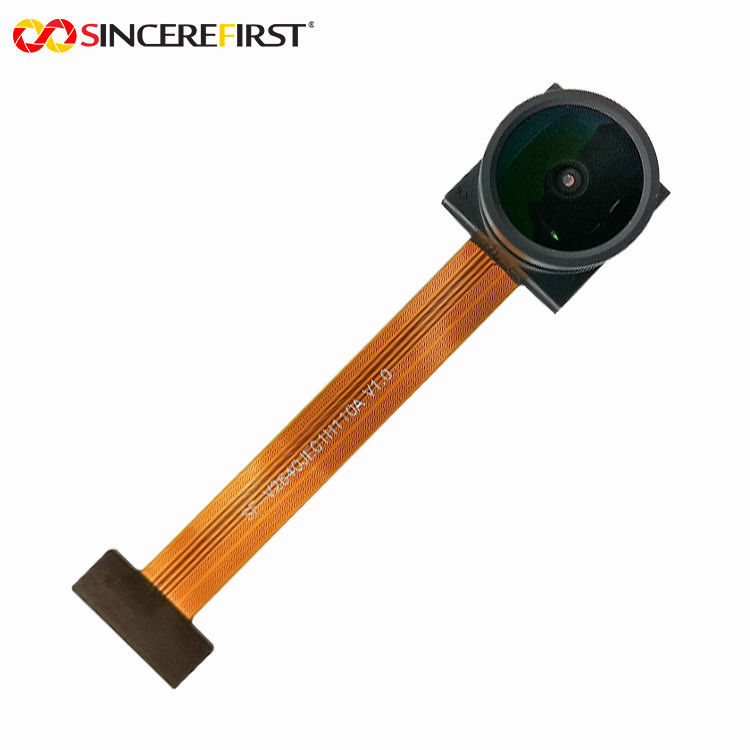

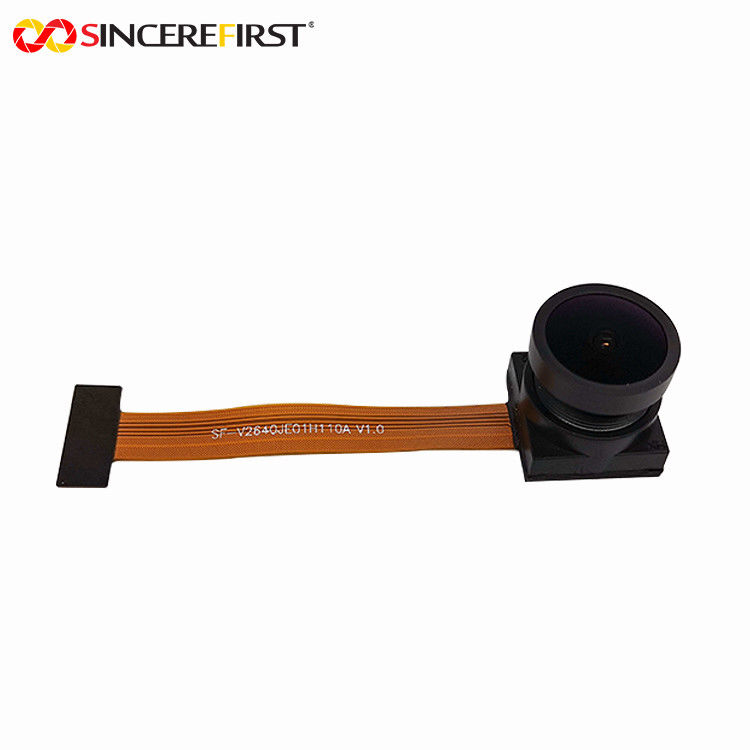

OV2640 Sensor Raspberry Pi Night Vision 2MP Camera Module For Esp32 Cam
Specificaitons
| Sensor | OV2640 |
| Array Size | 1600 × 1200 |
| Lens Size | 1/4" |
| Pixel Size | 2.2 x 2.2 μm |
| Output Format | 1/10 bit Raw RGB Data |
| Image Area | 3590 x 2684 μm |
| FOV(Field of View) | 115° |
| Scan Mode | Progressive |
| S/N Ratio | 40 dB |
| Dynamic Range | 50 dB |
Description
The OV2640 CAMERACHIPTM is a low voltage CMOS image sensor that provides the full functionality ofasingle-chip UXGA(1632x1232) camera and image processor in a small footprint package.The Ov2640providesfull-frame sub-sampled. scaled or windowed 8-bit/10-bitimages in a wide range of formatscontrolled through the Serial Camera Control Bus(SCCB)interface. This product has an image array capable of operating at up
to 15 frames per second(fps) in UXGA resolution with complete user control over image qualityformatting and output data transfer.All required image processingfunctions. including exposure controlgamma white balancecolor saturation. hue control white pixelcancelingnoise canceling. and more are also programmable through the SCCB interface. The OV2640 also includes acompression engine for increased processing power . In addition, OmniVision CAMERACHIPS use proprietary sensor technology to improve image quality by reducing or eliminating common lightina/electrical sources of image contamination, such as fixed pattern noises mearing etc to produce a cleanfully stable color image.
Features
◆High sensitivity for low-light operation
◆Low operating voltage for embedded portable apps
◆Standard SCCB interface
◆Output support for Raw RGBRGB(RGB565/555),
GRB422,YUV(422/420)and YCbCr(42:2)formats
◆Supports image sizes:UXGASXGASVGA and any
size scaling down from SXGAto40x30
◆VarioPixelmethod for sub-sampling
◆Automatic image control functions including Automatic Exposure Control(AEC),Automatic Gain Control (AGC),Automatic White Balance(AWB),Automatic Band Filter(ABF).and Automatic Black-Level Calibration(ABLC)
◆lmage quality controls including color saturation gamma, sharpness(edgeenhancement),lens correction,white pixel cancelingnoise canceling,and 50/60 Hz luminance detection
◆Line optical black level output capability
◆Video or snapshot operation
◆Zooming panning, and windowingfunctions
◆Internal/external frame synchronization
◆Variable frame rate control
◆Supports LED and flash strobe mode
◆Supports scaling
◆Supportscompression
◆Embedded microcontroller
Applicaitons
Robots, Drones
Action Cameras
3D scanning applications
Field animal camera
Recording slow motion
Machine vision, etc.
