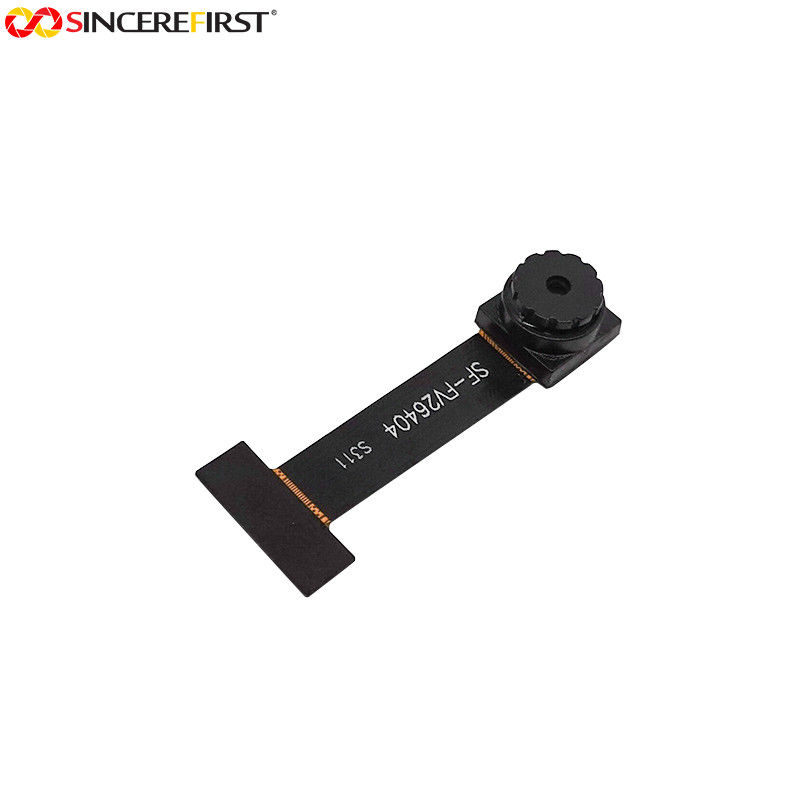

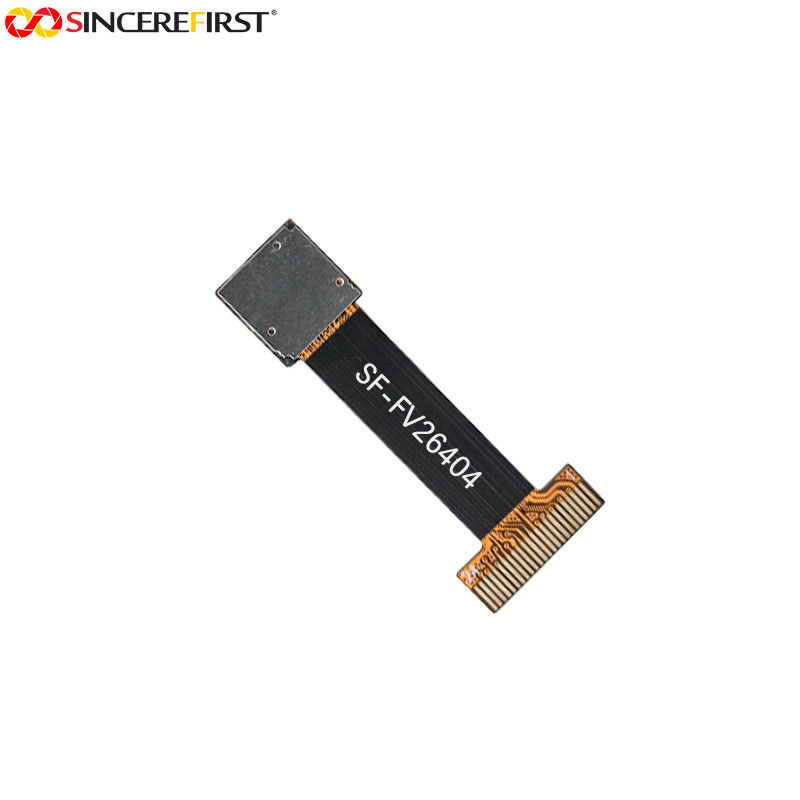

Micro ESP32 OV2640 Arduino 2MP Night Vision 65 Degree DVP Camera Module
Specificaitons
| Product Name | OV2640 Camera Module |
| Pixel | 2 Megapixel |
| Sensor | CMOS |
| Interface | DVP |
| Focus | Fixed Focus Lens |
| Sensor Size | 1/4-inch CMOS Sensor |
| Type | FPC Camera Module |
| Warranty | 10 Years |
| Repcement | 1 Year |
| Payment | Paypal, TT, Western Union, Credit Card |
Description
The OV2640 2MP Camera Module is based on the color OV2640 sensor from OmniVision. The sensor has a 1/4.0″ optical format, which combined with the pixel size of 2.2 µm x 2.2 µm, results in the 2.0 MP 1600 x 1200 UXGA image.
This product has an image array capable of operating at up to 15 frames per second (fps) in UXGA resolution with complete user control over image quality, formatting and output data transfer. All required image processing functions. including exposure control, gamma, white balance,color saturaton, hue control, whitepixelcanceling, noise canceling. and more, are also programmable through the SccB interiace. The ov2640 also includes a compression engine for increased processing power. In addition, OmniVision Camera chips use proprietary sensor technology to improve image quality by reducing oreliminating common lighting/electrical sources of imagecontamination.such as fixed pattern noise, smearing, etc., to produce a clean, fully stable color image.
Features
◆High sensitivity for low illumination applications
◆Low Voltage Suitable for Embedded Applications
◆Standard SCCB interface, compatible with I2C interface
◆RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats
◆Supporting UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF and sizes up to 40x30
◆Supporting VarioPixel sub-sampling
◆Functions of automatic impact control include automatic exposure control, automatic gain control, automatic white balance,
◆automatic elimination of light stripes, automatic black level calibration. Image quality control includes color saturation, color
◆phase, gamma, sharpness ANTI_BLOOM.
◆ISP has the function of eliminating noise and compensating bad points
◆Supporting image zooming
◆Compensation for lens loss of light
◆Self-regulation of saturation
◆Automatic adjustment of edge enhancement
◆Auto-adjustment of noise reduction
◆key parameter
◆Maximum Format UXGA of Photosensitive Array 1632x1232
Applicaitons

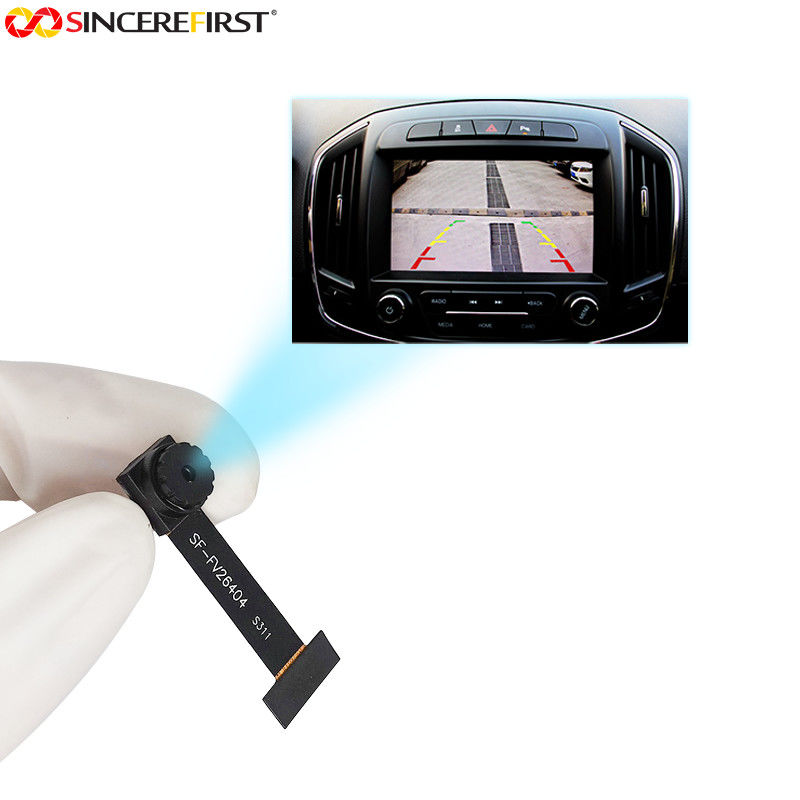

Automotive Solution
Uav Solutions
Uav Special Modules
Drone Solutions
Aerial Filming Solutions
Optical Technology Solutions
Camera Solutions
1/4-inch CMOS Sensor
Our products are sold all over the world, you can rest assured.
